convexity screen printer.Semi-automatic screen printing machine convex GD manufacturer from China Ruian Guanda Machinery Co.,Ltd

convexity screen printer.Semi-automatic screen printing machine convex

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GD

Production Capacity: 600

Delivery Date: 7days

Type: Inkjet Printer

Usage: Others

Means of Transport: Ocean,Land

Packing: Wooden packaging

Plate: Screen Printer

Color & Page: Single Color

Brand Name: Guanda

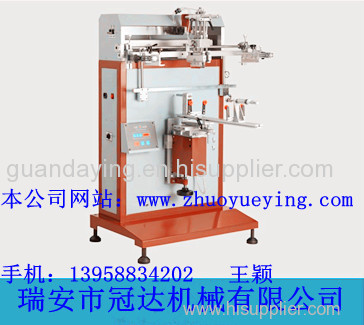

Semi-automatic screen printing machine convex

Features:
1.Controlled by Microcomputer.
2.Equipped with four-digit auto counter.
3.Round face and conical printing function.
4.Automatic scraping.
5.Adjustable printing stroke and printing speed.
6.Auto balance blade with the equalized printing pressure.
7.Workbench and frame holder can be adjust back and forth, left and right, up and down.
8.The blade can be independently lifted for replacement and cleaning.
Main technical parameters:

Model	Screen Size(mm)	Printing area(mm)	Printing speed (piece/ Hour)	Voltage	Dimensions(mm)
QM-450	650×500	450×300	700	220V/50/60HZ	1600×780×1400
QM-250-3	430×280	230×260	1200	220-110V/50/60HZ	650×760×1250
QM-250-P	430×280	230×160	1000	220-110V/50/60HZ	650×760×1250
QM-400-3	680×280	380×260	1000	220-110V/50/60HZ	650×900×1340
QM-500-T	680×300	480×300	1000	220-110V/50/60HZ	1200×1100×1360
QM-600-T	780×300	580×300	900	220-110V/50/60HZ	1200×1200×1360
QM-700-T	880×300	680×300	850	220-110V/50/60HZ	1200×1300×1360
QM-800-T	980×300	780×300	800	220-110V/50/60HZ	1200×1400×1360
Note: Special sizes and specifications can be customized.
